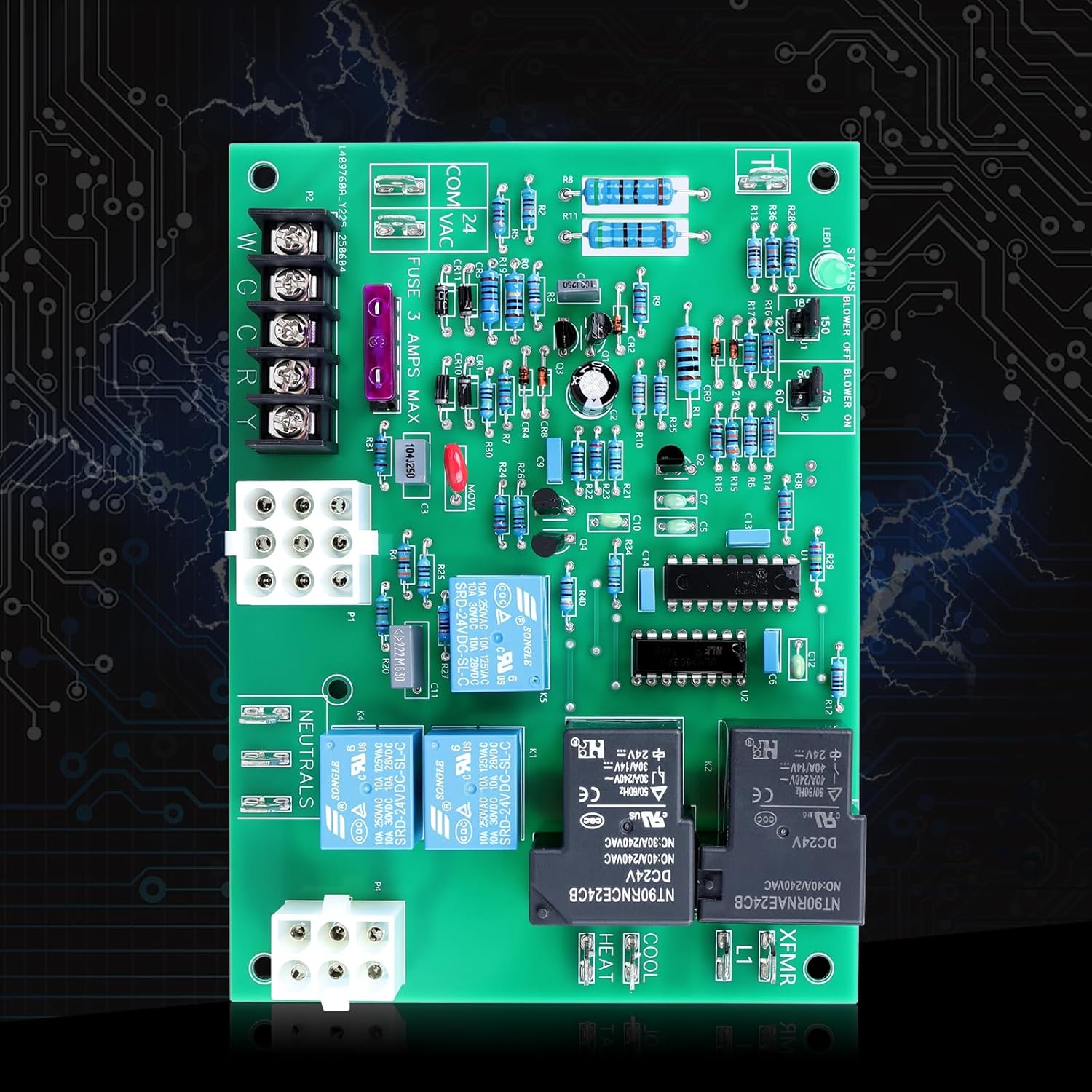

S1-7990-319P 7990-319P Furnace Control Circuit Board Replacement for 031-01910-000 031-01932-002 ICM2801
4.9 (37 items)
Limited Time SaleUS$19.50 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210110150 | Release Date | 2026/04/02 | List Price | US$13.00 | Model Number | 210110150 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Models: DGAM075BDE, DGAM075BD, DGAM056BDF, DGAM055BDE, DG AM075BDF, DG AT056BDE, DGAT075BDD, DGAT075BDE BDTA, DGAA056BDTA, DG AA056BD, DGAA070BDTB, DGAA077BDTA, DR AA077BDTB, DG AA090BDTA, DP AA090BDTB, DLAS056BDE, DLAS055BDF, DLAS075BDF, DL AS056E DLAS0.75BDD and DLAS075BDE. Replaces part number: 7956-318P/A, 7956-318P, 7956-319P, 7956-3191, S1-7956-319P, 7990-318, 7990-318P, 7990-318P, S1-7990-318P, S1-7990-318 P/A, 7990-1319, 7990-321P, 7990-360P, 031-01910-000, 031-01932-000, 031-01932-001, 031-01932-002, 1012-956, 1012-83-9561, 1012-956A, ICM2801, CIB7990 and 082656. Features : Ignitor: 5A @ 120 VAC. Gas Valve: 1A @ 24 VAC. Heat: 5A, 1/2 HP, 250 VAC. Cool Blower: 10A, 2 HP, 240 VAC. Inducer Motor: 4A FLA, 8A LRA @ 120 VAC. Line Voltage Range: 98-132 VAC @ 60Hz. Function: Maintain complete furnace control functions, including ignition, blower control, and safety monitoring, to achieve optimal heating system performance. Package included: 1*Furnace Control Circuit Board. This product contain instructions.
- Models: DGAM075BDE, DGAM075BD, DGAM056BDF, DGAM055BDE, DG AM075BDF, DG AT056BDE, DGAT075BDD, DGAT075BDE BDTA, DGAA056BDTA, DG AA056BD, DGAA070BDTB, DGAA077BDTA, DR AA077BDTB, DG AA090BDTA, DP AA090BDTB, DLAS056BDE, DLAS055BDF, DLAS075BDF, DL AS056E DLAS0 75BDD and DLAS075BDE
- Replaces part number: 7956-318P/A, 7956-318P, 7956-319P, 7956-3191, S1-7956-319P, 7990-318, 7990-318P, 7990-318P, S1-7990-318P, S1-7990-318 P/A, 7990-1319, 7990-321P, 7990-360P, 031-01910-000, 031-01932-000, 031-01932-001, 031-01932-002, 1012-956, 1012-83-9561, 1012-956A, ICM2801, CIB7990 and 082656

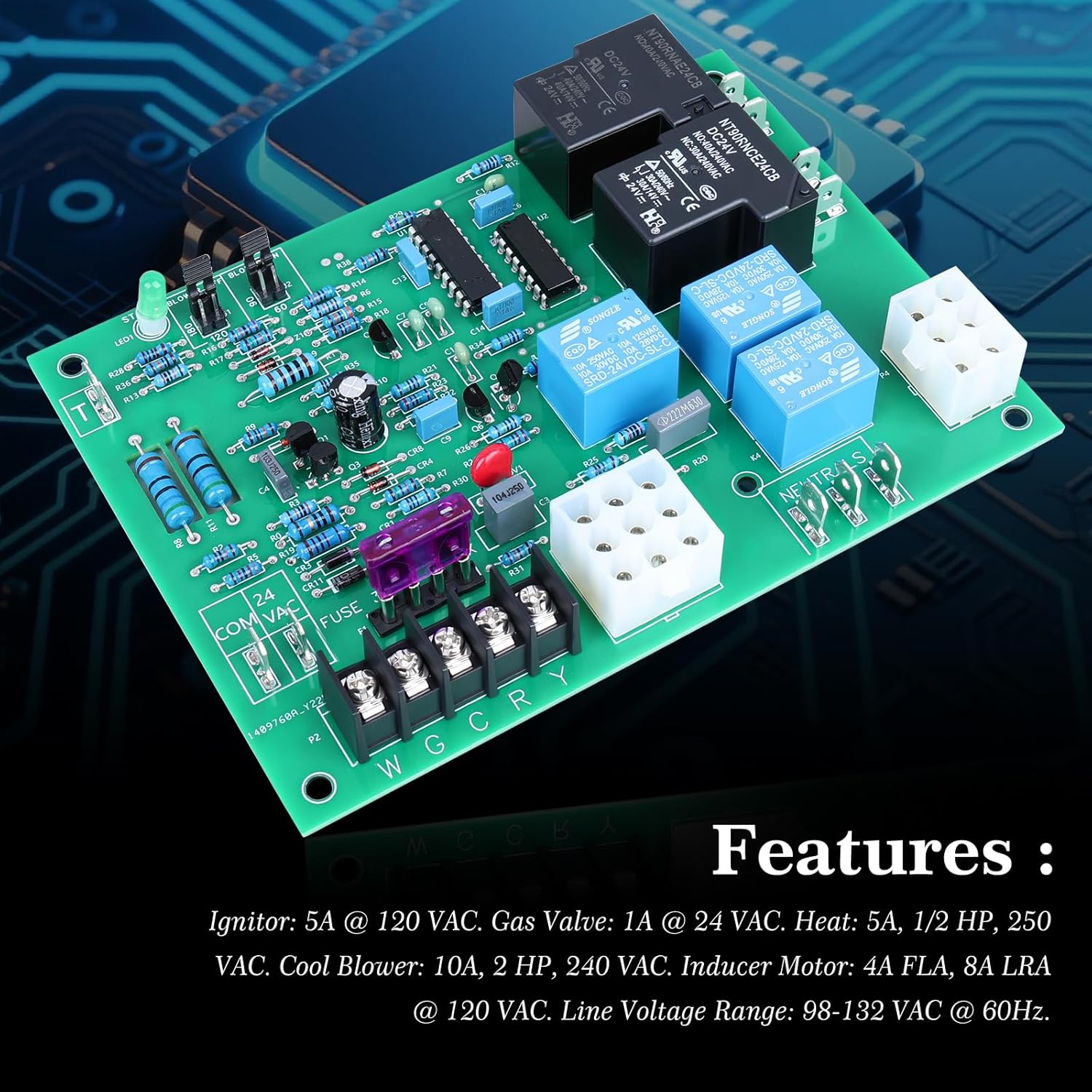

- Features : Ignitor: 5A @ 120 VAC. Gas Valve: 1A @ 24 VAC. Heat: 5A, 1/2 HP, 250 VAC. Cool Blower: 10A, 2 HP, 240 VAC. Inducer Motor: 4A FLA, 8A LRA @ 120 VAC. Line Voltage Range: 98-132 VAC @ 60Hz
- Function: Maintain complete furnace control functions, including ignition, blower control, and safety monitoring, to achieve optimal heating system performance
- Package included: 1*Furnace Control Circuit Board. This product contain instructions
| Color | Green |
|---|---|
| Item Weight | 7.2 ounces |
| Part Number | CB-S179 |
| Manufacturer | Fundyliue |
| Item model number | S1-7990-319P 7990-319P |
| Batteries Included | No |
| Batteries Required | No |
| Product Dimensions | 6.89 x 4.92 x 1.57 inches |
| Included Components | 1*Furnace Control Circuit Board. |
